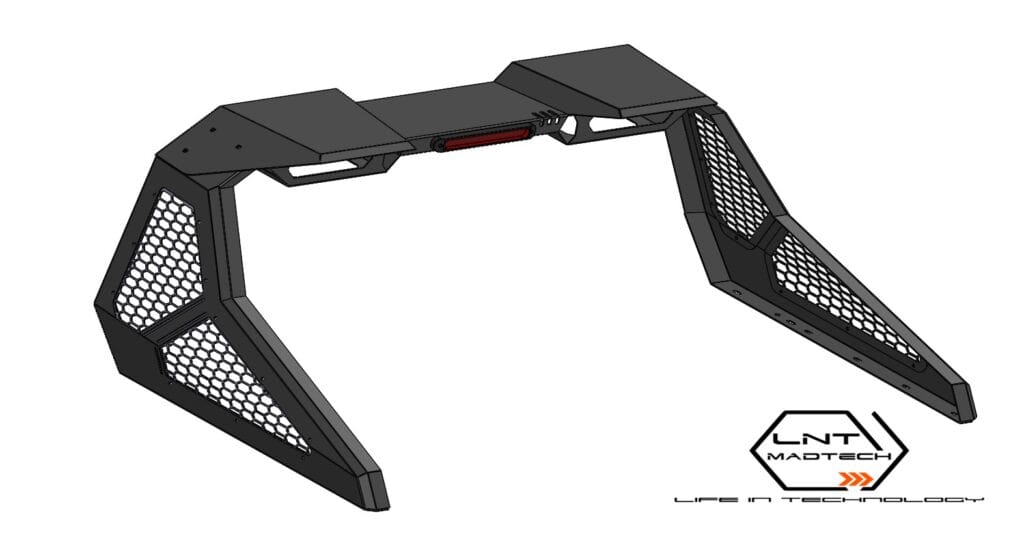

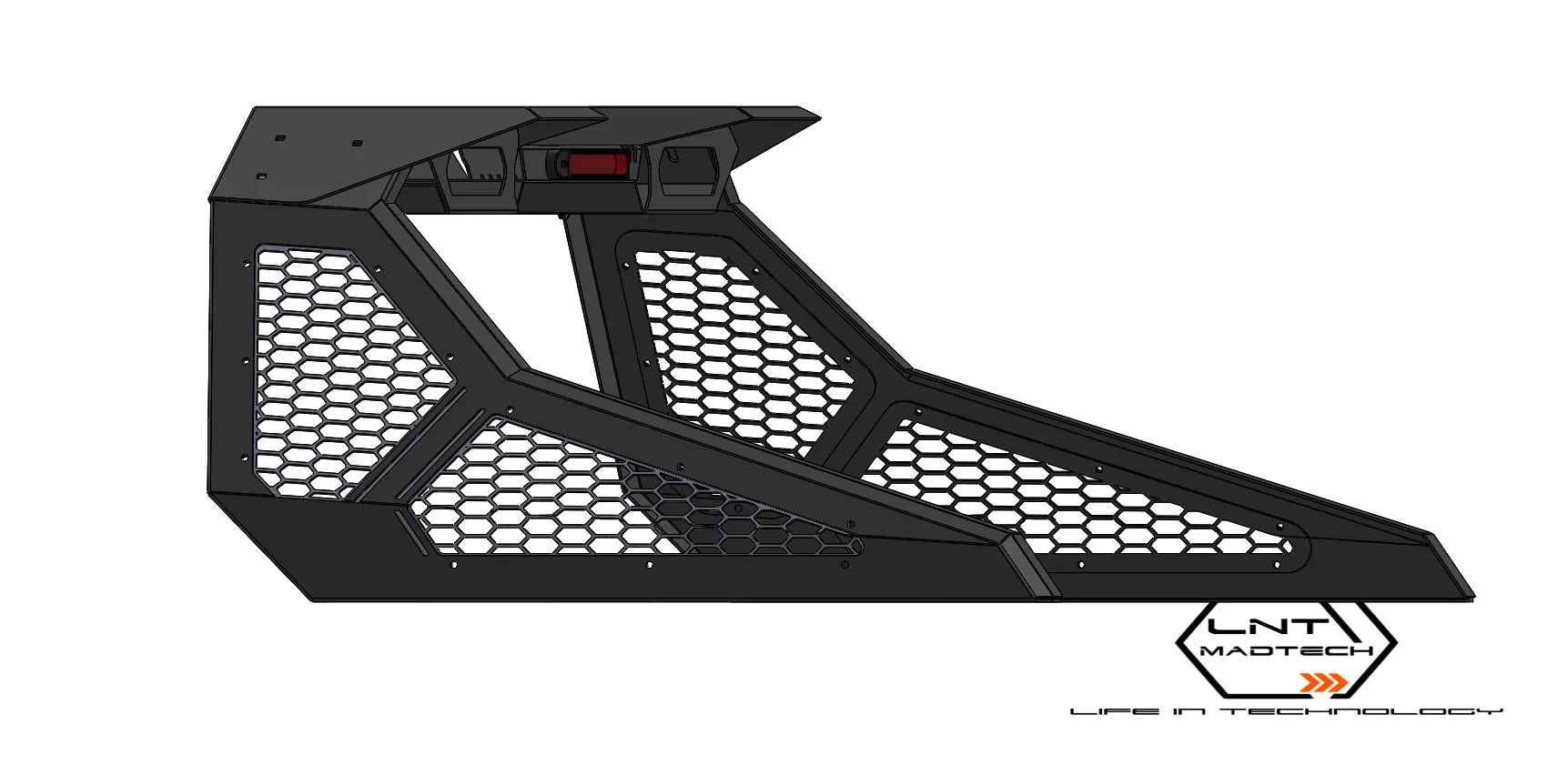

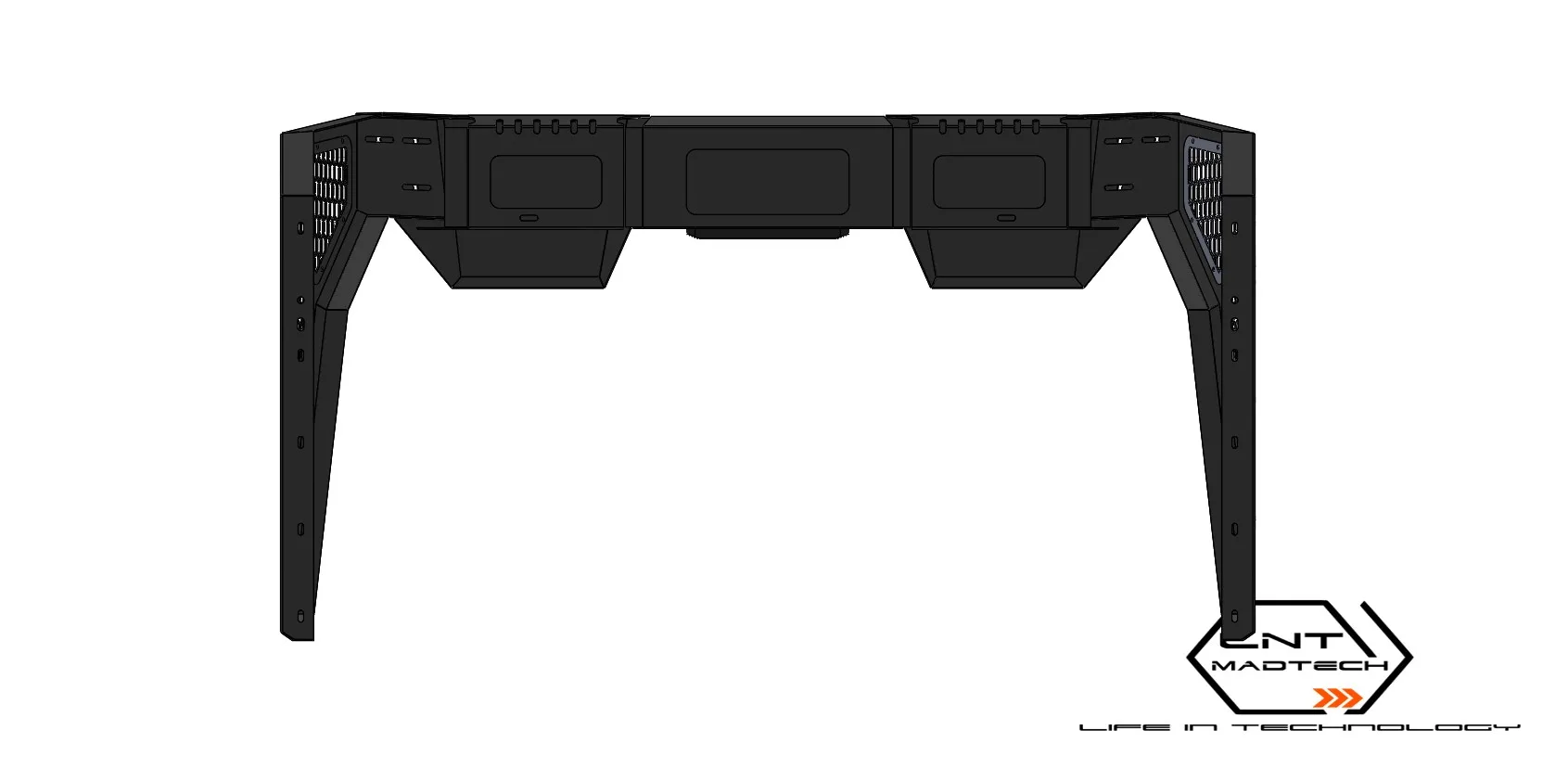

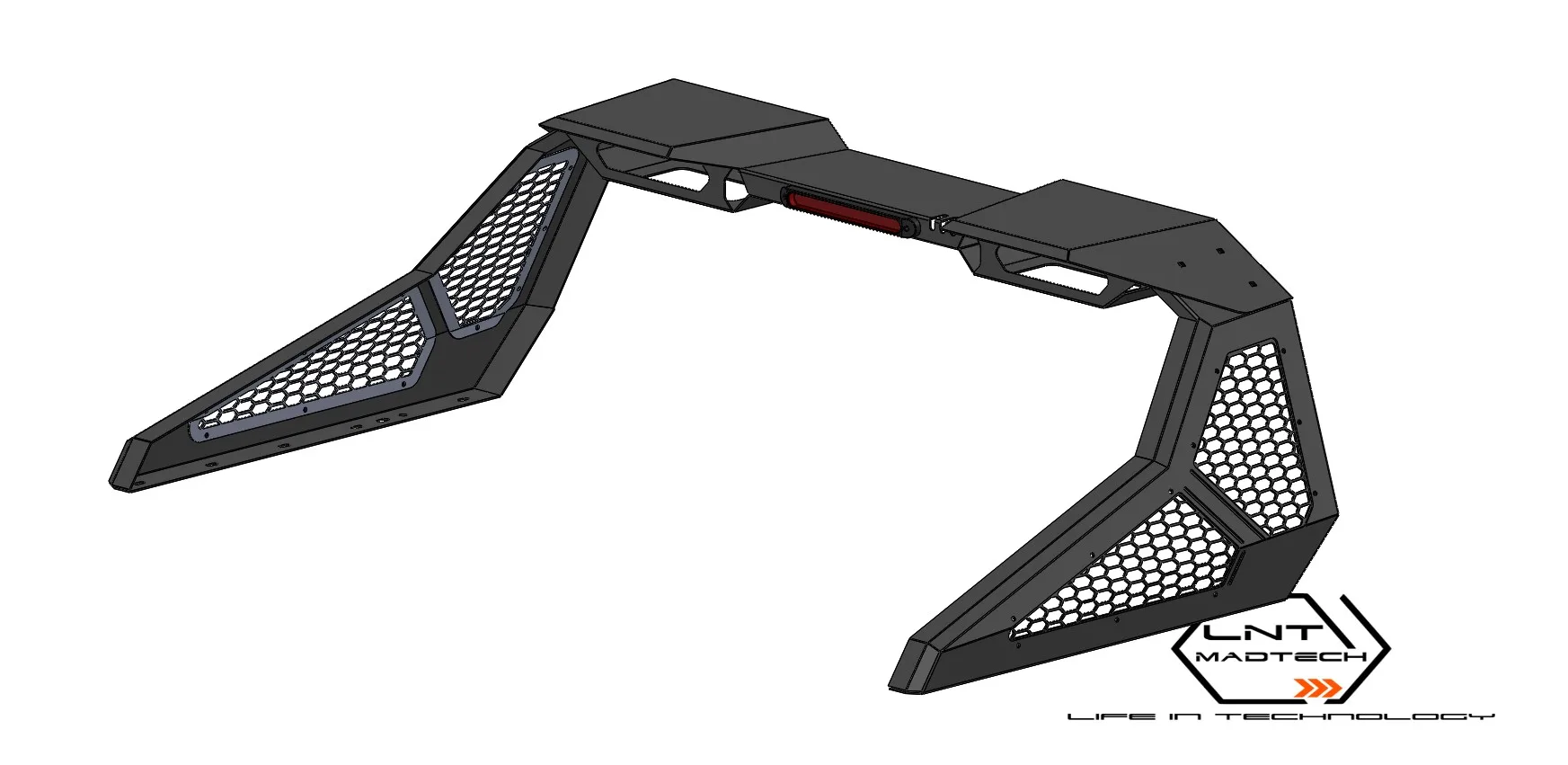

ROLL BAR design model number 04 [RB4] (available for all pickups)

349,0 $

This is the design of an actual product.

LNT MADTECH will provide you with a complete set of digital data to help you practice manufacturing this product. In addition, you can request a new design according to your ideas and feel suitable for your market.

SKU: RB4 Categories: ROLL BAR [RB], Amarok, BT-50, Canyon, Colorado, D-Max, F150, F250, F350, Frontier 3.8V6, Gladiator (JT), Hilux, Hummer EV, KAICENE/HUNTER F70, KGM Rexton, KING KONG (#JINGGANG PAO), LC79, Maverick, Navara/Frontier, POER/P-series/Cannon/Ute/Sucan/Sahar, RAM 1500, RAM 2500, RAM 3500, Ranger, Ranger Raptor, Shark, Sierra, Silverado, Tacoma, Titan/Titan XD, Triton, Tundra Tags: 2500, 3500, bar, box, bull, bull bar, chevrolet, colorado, design, DIY, dmax, drawing, DXF, f150, ford, gladiator rubicon, gmc, hilux, isuzu, jeep, l200, mazda, n70, n80, navara, new, nissan, offroad, Pickup, pickup accessories, pro4x, production, ram, ram 1500, ranger, raptor, revo, roll, roll bar, s10, sell, steel, tacoma, tool, tool box, TOYOTA, triton

Description

(available for all pickups)

For this Roll Bar design, we have available appropriate data for each model.Please specify the vehicle model information (vehicle name, version, year of manufacture or model generation) that you want to apply this design to when ordering. so we can send you the right design for your car model.Note: - (x) is the design code and the serial number of the design. - (y) is the cab version (SC - single cab, CC - crew cab). If nothing is written, it is the full cab type. For example: Roll Bar design number 01 (RB1) for FORD Ranger 2023 single cab is RB1R23SC.

RB(x)H06+(y) for TOYOTA Hilux 2006-2010 (all versions).
RB(x)H11+(y) for TOYOTA Hilux 2011-2014 (all versions).
RB(x)H15+(y) for TOYOTA Hilux 2015-2023 (all versions).
RB(x)TCM16+(y) for TOYOTA Tacoma 2016-2023 (all versions).
RB(x)TD14+(y) for TOYOTA Tundra SR4 2014-2021 (all versions).
RB(x)TD22+(y) for TOYOTA Tundra SR5 2022 on (all versions).
RB(x)LC79_07+(y) for TOYOTA Land Cruiser 79 2007+ (all versions).
RB(x)R12+(y) for FORD Ranger 2012-2021 (all versions).
RB(x)R22+(y) for FORD Ranger Next Gen 2022 on (all versions).
RB(x)RT12+(y) for FORD Raptor 2012-2021 (all versions).
RB(x)RT22+(y) for FORD Raptor Next Gen 2022 on (all versions).
RB(x)F150_12+(y) for FORD F150 2012-2014 (all versions).
RB(x)F150_15+(y) for FORD F150 2015-2020 (all versions).
RB(x)F250_11+(y) for FORD F250 3rd Gen 2011-2016 (all versions).
RB(x)TT15+(y) for MITSUBISHI Triton (L200) 2015-2022 (all versions).
RB(x)DM13+(y) for ISUZU D-max 2013-2016 (all versions).
RB(x)DM17+(y) for ISUZU D-max 2017-2019 (all versions).
RB(x)DM20+(y) for ISUZU D-max 2020-2024 (all versions).
RB(x)NA16+(y) for NISSAN Navara 2016-2019 (all versions).
RB(x)NA20+(y) for NISSAN Navara 2020-2024 (all versions).
RB(x)CO16+(y) for CHEVROLET Colorado 2016-2021 (all versions).
RB(x)CO22+(y) for CHEVROLET Colorado 2022-2024 (all versions).
RB(x)ZR2_15+(y) for CHEVROLET Colorado ZR2 2015-2020 (all versions).
RB(x)CS1500_20+(y) for CHEVROLET Silverado 1500 2020-2024 (all versions).
RB(x)CS2500_20+(y) for CHEVROLET Silverado 2500 2020-2024 (all versions).
RB(x)RAM1500_09+(y) for DODGE RAM 1500 2009-2018 (all versions).
RB(x)RAM1500_19+(y) for DODGE RAM 1500 2019-2024 (all versions).
RB(x)RAM2500_09+(y) for DODGE RAM 2500 2009-2018 (all versions).
RB(x)RAM2500_19+(y) for DODGE RAM 2500 2019-2024 (all versions).
RB(x)GMC1500_19+(y) for GMC 1500 2019-2024 (all versions).
RB(x)GMC2500_19+(y) for GMC 2500 2019-2024 (all versions).
RB(x)JERU18+(y) for JEEP Gladiator Rubicon 2018-2024 (all versions).
,,,,,,,,,,,,,,

You will receive a full set of digital data for design production:

DXF file, for cutting parts from metal sheets via CNC cutting machines (Laser cutting, Plasma cutting, Waterjet cutting, ...)
PDF file, instructions for processing parts after CNC cutting (this will contain full information about: part number, number of parts needed, folding direction, folding angle, folding tool radius, ...), Detailed instructions on how to assemble and finish, in addition, contain dimension information for you to easily compare and check during the production process.
CNC files, help you create CNC parts using CNC machines. (in case there are CNC details in the design).
Sheet files, notes and links to help you choose and purchase accessories used in the design (For example: locks, hydraulic bars, slide rails, hinges, rubber, ...).

Do you want a custom design?

In addition, We can design according to your requirements. this would be great if you have an idea of a new product that is viable in your market, We will help you design it and render it to a file for the production of that idea.Please contact us if you have special requests.

Note when ordering

For ready-to-download designs:

After you pay, the website will automatically send you a link to download the data.
In case you do not see the sent mail, you may need to check your spam box.
If you have problems with the download link, please contact LNTMADTECH for support.

For custom designs - not available for download:

Please note the make and model name as well as the year of manufacture of the vehicle you want to apply this design to.
For example: TOYOTA Tacoma 2019 crewcab.
You will receive the full set of digital production plans via the email address you provided within 24-48 hours after payment.

Are you afraid of being abandoned after purchasing our production file sets?

Don’t worry, our technical team will be ready to assist you 24/7. Whenever you have problems in the production process or have questions remember that LNTMADTECH is always by your side to support you.
