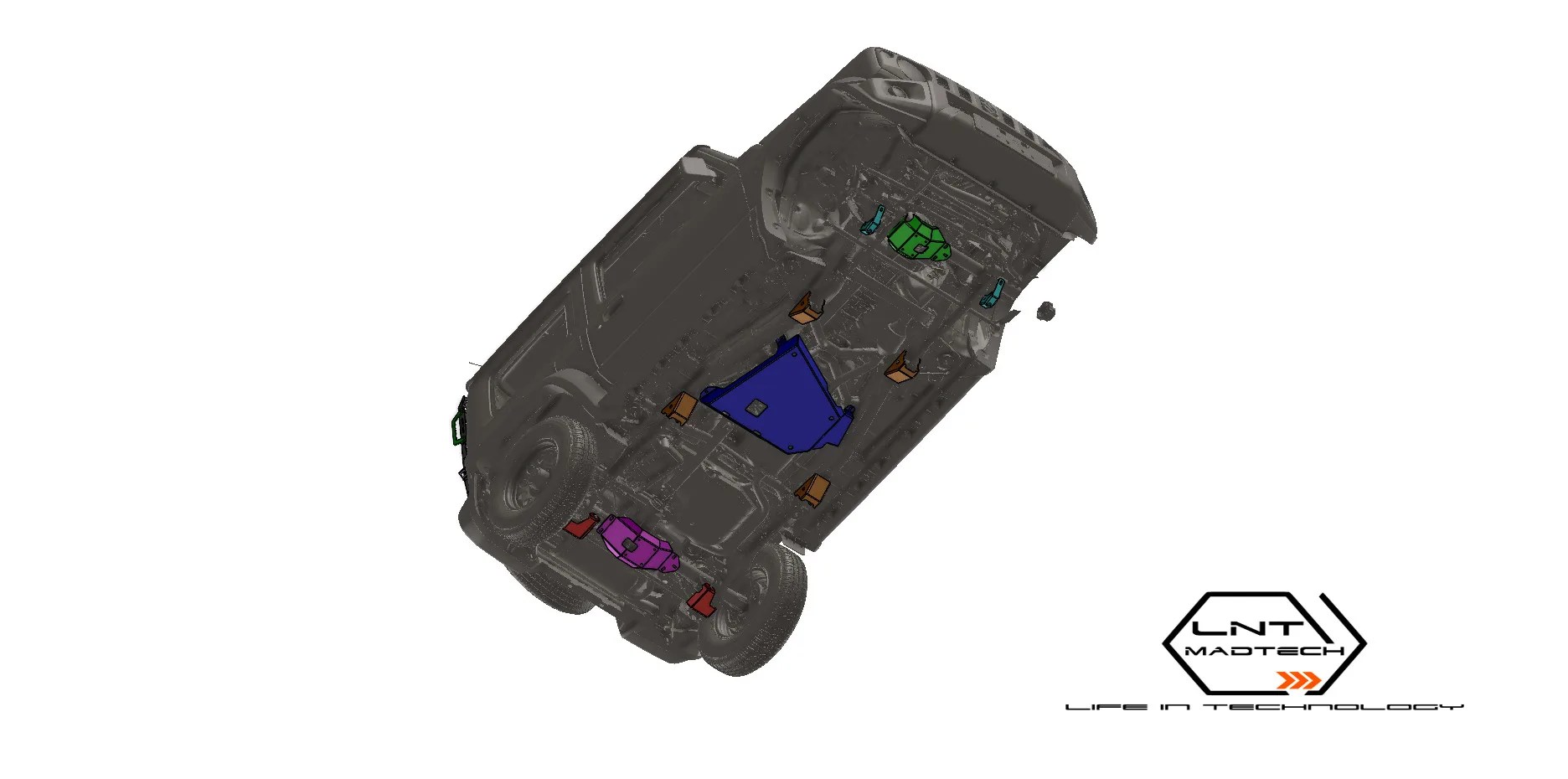

Underbody Protection Kit for Suzuki Jimny 4th generation 2018+ [UPPJIMNY18+]

• The design uses 4mm thick sheet metal material.

• The set includes:

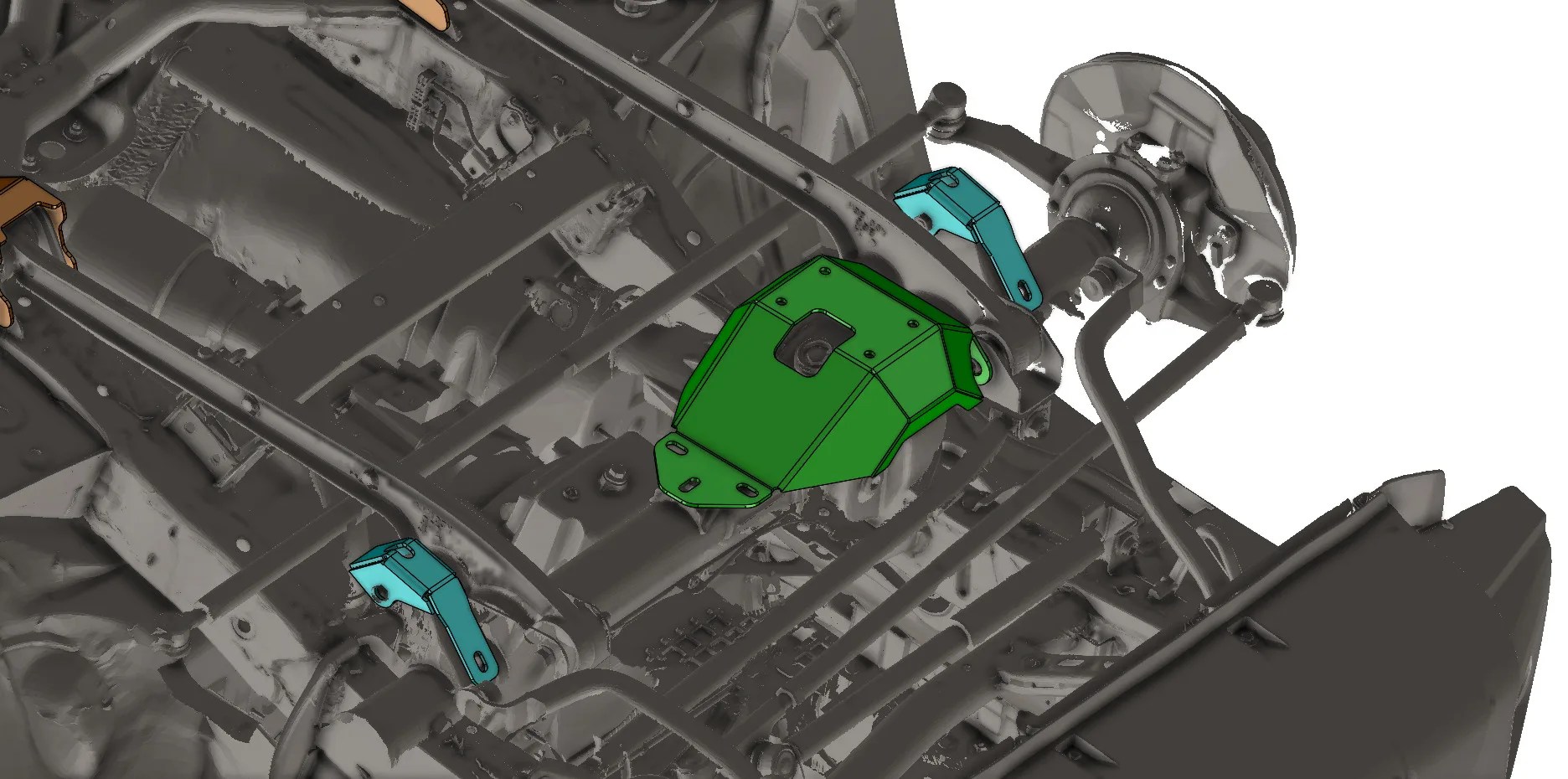

  – Front and rear axle protection skid plate.

  – Intermediate gearbox protection skid plate.

  – Front and rear shock absorber protection skid plate.

  – Front and rear suspension protection skid plate.

You will receive a full set of digital data for design production:

• DXF file, for cutting parts from metal sheets via CNC cutting machines (Laser cutting, Plasma cutting, Waterjet cutting, ...)
•  PDF file, instructions for processing parts after CNC cutting (this will contain full information about: part number, number of parts needed, folding direction, folding angle, folding tool radius, ...), Detailed instructions on how to assemble and finish, in addition, contain dimension information for you to easily compare and check during the production process.
• CNC files, help you create CNC parts using CNC machines. (in case there are CNC details in the design).
• Sheet files, notes and links to help you choose and purchase accessories used in the design (For example: locks, hydraulic bars, slide rails, hinges, rubber, ...).

Do you want a custom design?

In addition, We can design according to your requirements. this would be great if you have an idea of a new product that is viable in your market, We will help you design it and render it to a file for the production of that idea.Please contact us if you have special requests.

Note when ordering

For ready-to-download designs:

• After you pay, the website will automatically send you a link to download the data.
• In case you do not see the sent mail, you may need to check your spam box.
• If you have problems with the download link, please contact LNTMADTECH for support.

For custom designs - not available for download:

• Please note the make and model name as well as the year of manufacture of the vehicle you want to apply this design to.
• For example: TOYOTA Tacoma 2019 crewcab.
• You will receive the full set of digital production plans via the email address you provided within 24-48 hours after payment.

Are you afraid of being abandoned after purchasing our production file sets?

Don’t worry, our technical team will be ready to assist you 24/7. Whenever you have problems in the production process or have questions remember that LNTMADTECH is always by your side to support you.

LNT MADTECH, we aim for long-term cooperation.
